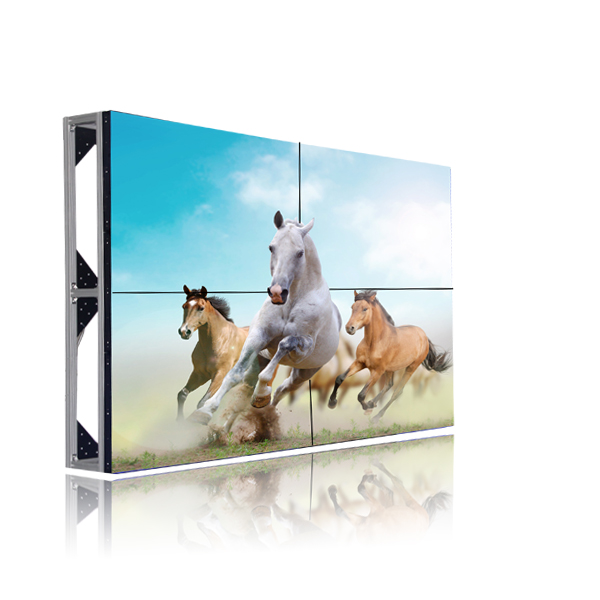

[HQ460-V4]46 inch LCD Video Wall

Panel Brand: New A grade SAMSUNG
Max Resolution: 1920x1080 Aspect Ratio: 16:9
Active Area: 1018.08mm(H) x 572.67mm(V)

Bezel : 3.5mm Narrow Bezel

Max Support 15pcs(H) x 15pcs(V) Matrix

  • LCD Panel
  • Input & Output
  • Specification
  • Project
  • Media Player
  • Applicable Fields
Panel Size(Diagonal) 46 inch(3.5mm Narrow Bezel)
Display Area(HxV) 1018.08mm x 572.67mm
Display Colors 16.7M
Resolution 1920 x RGB x 1080
Contrast Ratio 3500:1
Brightness(cd/m2) 700
Responsive Time 8ms
Viewing Angle(H/V) 178°/178°
Life Time(minimum) 60,000 hours
Pixel Arrangement RGB vertical stripe
Surface Treatment Haze 44% / 3H
LCD Input VGA x 1

DVI x 1

DP x 1

HDMI x 1

RS232 x 1

Compoite Port
LCD Output DP Loop x 1 RS232 x 2
Voltage AC100V~240V, 50/60Hz

Operating Mode Software
Operating Port RS232
LCD Matrix Max support 15x15
Sleeping Power Consumption  < 5w
Operating Power Consumption < 180w
Operating Temperature 0-50℃
Storage Temperature -20-65℃
Operating Humidity 20-90%RG
Storage Humidity 5-90%RH

video wall.jpg
CPU Allwinner A20 1.0GHz
RAM Onboard 1G
Storage Onboard 4G(Max 32G extended by SD card)
Interfaces USB x 2
SD slot x 1

SIM x 1

RJ45 x1

HDMI-out x 1

VGA-out x 1

Audio-out x 1


Setreo Line in
WiFi Onboard 150mbps WiFi Onboard
3G Network Option
OS Version Android 4.3
Supported Audio MP3/AC3 (B), MPEG, DTS etc
Supported Video MPEG-1/2, H.264 / AVC, VC-1, JPEG, PNG, VP8 etc
Control Mode Software via Network
Business Organizations supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops, etc.
Non-profit Organizations Telecommunications, post offices, hospital, schools, etc.
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc.
Real Estate Property Apartments, offices, commercial buildings, model rooms, property brokers, etc.
Entertainments Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc.
