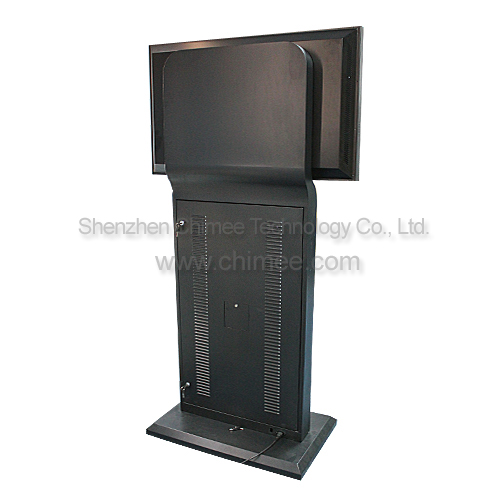

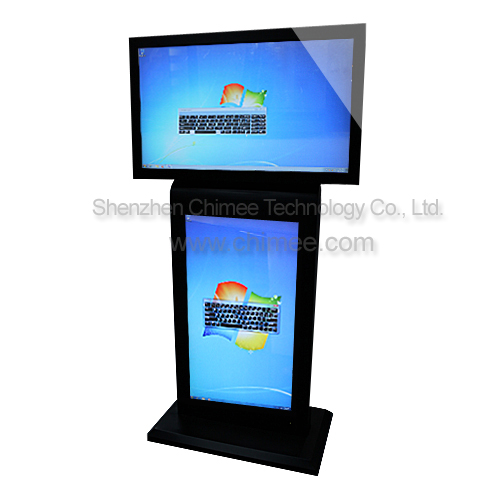

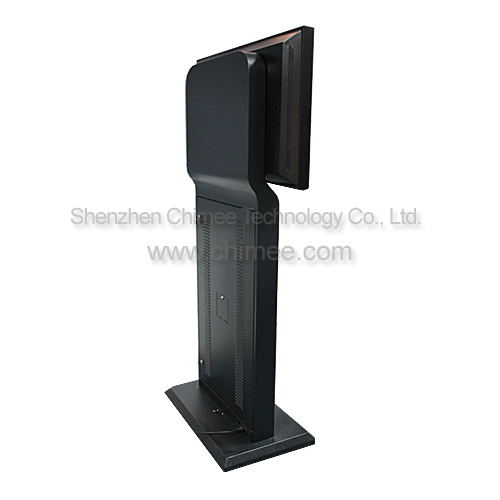

[HQ42-42-C1-T]Double 42 inch Floor Standing All in one Computer
Panel Brand: New A grade SAMSUNG
Max Resolution: 1920x1080 Aspect Ratio: 16:9
Active Area: 930.25mm(H)x523.01mm(V)
Metal Frame + Tempered Glass
The Upper screen with IR Multi Touch or Optical Muti Touch Screen
Black and Silver color
  • LCD Panel
  • Touch screen specs
  • Hardware
  • Product Features
  • Applicable Fields
  • Customization
Panel Size(Diagonal) 42.02 inch
Display Area(HxV) 930.240mm x 523.260mm
Outline Dimension(HxV) 983mm x 576.0mm
Display Colors 10bit, 1.06Billion colors
Resolution 1920 x 1080
Pixel Pitch 0.4845 x 0.4845
Contrast Ratio 1300:1
Brightness(cd/m2) 500
Responsive Time 5ms
Viewing Angle(H/V) 178°/178°
Life Time(minimum) 50,000 hours
Touch screen Size 42 inch
Touch Points Detects up to 32 points
Touch technology IR/ Touch Cell Imaging
Touch Method Finger, gloved hand or other pointer.
Luminous  Transmission Better than 98% with glass
Touch Activation No Pressure required
Finger Touch accuracy ± 1.5mm
Touch Durability Unlimited
Touch response time 7~12 ms
Operating temperature 0~55℃
Operation humidity 10%~90%
Interface USB2.0 Full speed
OS Windows 2000, XP, VISTA, WINDOWS 7
  Solution1 Solution2 Solution3 Solution4
CPU Intel Atom D525, Dual Core, 1.8Ghz, 1M cache, 45nm Technology Intel Core i3-2100, 3.1Ghz, 3M Cache, Dual Core, Quad Threads Intel Core i5-2300, 2.8Ghz, 6M Cache, Quad Core, Quad Threads Intel Core i7-2600, 3.4Ghz, 8M Cache, Quad Core, 8 Threads
Chipset Intel NM10 + nVidia ION2 Intel H61 Express Intel H61 Express Intel H61 Express
RAM 2G DDR III/1333 DDR III/4G/1333/Up to 16G DDR III/4G/1333/Up to 16G DDR III/4G/1333/Up to 16G
HDD 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G 2.5 inch 320G SATA II/SSD from 16G
ODD DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional) DVD/RW/Blue-Ray(Optional)
Audio HD 8 Channel 7.1 Audio Sub-system Realtek ALC889 HD(7.1) 8 Channel Codec System Realtek ALC889 HD(7.1) 8 Channel Codec System Realtek ALC889 HD(7.1) 8 Channel Codec System
Graphics nVidia GT 218 integrated/ Full HD 1080P supported Integrated with CPU or Add-on a dedicated physical Graphics card Integrated with CPU or Add-on a dedicated physical Graphics card Integrated with CPU or Add-on a dedicated physical Graphics card
Network interface card 10/100/1000M Gigabyte Ethernet Cotroller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller
WiFi 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated 150M High Quality WiFi Integrated
Speaker 2 x 5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers 2 x5w/10w Built-in Stereo Speakers
Mouse/Keyboard Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional) Wired/Wireless Keyboard(Optional)
OS Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional) Windows XP/Vista/7/Fedora/Ubuntu(Optional)



1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

6.Floor standing type can be fixed on the ground by screws.

Business Organizations supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops, etc.
Non-profit Organizations Telecommunications, post offices, hospital, schools, etc.
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc.
Real Estate Property Apartments, offices, commercial buildings, model rooms, property brokers, etc.
Entertainments Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc.





1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.
