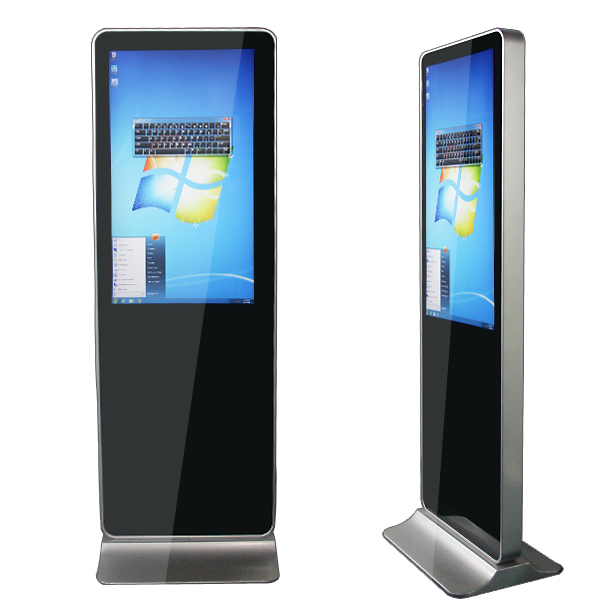

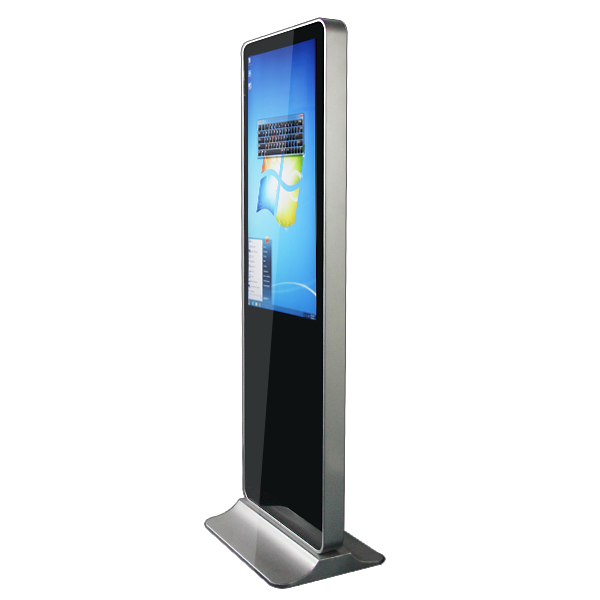

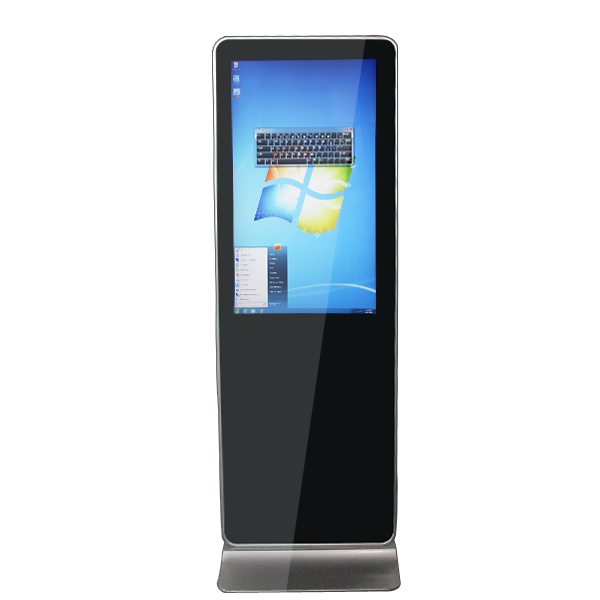

[HQ32CS-C2-T]32 inch Floor Standing Touch LCD All In One Computer
|
Panel Brand: New A grade LG
Max Resolution: 1366x768 Aspect Ratio: 16:9
Active Area: 697.684mm(H)x392.256mm(V)
Narrow Metal Frame + Tempered Glass + Acryl Board
IR Multi Touch Screen or Optical Multi Touch Screen
Black and Silver color
|
|
|
|
|
- LCD Panel
- Touch screen specs
- Hardware
- Product Features
- Applicable Fields
- Customization
| Panel Size(Diagonal) |
32.02 inch |
| Display Area(HxV) |
697.68mm x 392.25mm |
| Outline Dimension(HxV) |
760mm x 450mm |
| Display Colors |
16.7M |
| Resolution |
1366 x 768 |
| Pixel Pitch |
0.51075 x 0.51075 |
| Contrast Ratio |
4000:1 |
| Brightness(cd/m2) |
450 |
| Responsive Time |
<5.5ms |
| Viewing Angle(H/V) |
178°/178° |
| Life Time(minimum) |
50,000 hours |
| Touch screen Size |
32 inch |
| Touch Points |
Detects up to 32 points |
| Touch technology |
IR/ Touch Cell Imaging |
| Touch Method |
Finger, gloved hand or other pointer. |
| Luminous Transmission |
Better than 98% with glass |
| Touch Activation |
No Pressure required |
| Finger Touch accuracy |
± 1.5mm |
| Touch Durability |
Unlimited |
| Touch response time |
7~12 ms |
| Operating temperature |
0~55℃ |
| Operation humidity |
10%~90% |
| Interface |
USB2.0 Full speed |
| OS |
Windows 2000, XP, VISTA, WINDOWS 7 |
| |
Solution1 |
Solution2 |
Solution3 |
Solution4 |
| CPU |
Intel Atom D525, Dual Core, 1.8Ghz, 1M cache, 45nm Technology |
Intel Core i3-2100, 3.1Ghz, 3M Cache, Dual Core, Quad Threads |
Intel Core i5-2300, 2.8Ghz, 6M Cache, Quad Core, Quad Threads |
Intel Core i7-2600, 3.4Ghz, 8M Cache, Quad Core, 8 Threads |
| Chipset |
Intel NM10 + nVidia ION2 |
Intel H61 Express |
Intel H61 Express |
Intel H61 Express |
| RAM |
2G DDR III/1333 |
DDR III/4G/1333/Up to 16G |
DDR III/4G/1333/Up to 16G |
DDR III/4G/1333/Up to 16G |
| HDD |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
| ODD |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
| Audio |
HD 8 Channel 7.1 Audio Sub-system |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
| Graphics |
nVidia GT 218 integrated/ Full HD 1080P supported |
Integrated with CPU or Add-on a dedicated physical Graphics card |
Integrated with CPU or Add-on a dedicated physical Graphics card |
Integrated with CPU or Add-on a dedicated physical Graphics card |
| Network interface card |
10/100/1000M Gigabyte Ethernet Cotroller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
| WiFi |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
| Speaker |
2 x 5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
| Mouse/Keyboard |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
| OS |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.
2.High-class metal material frame, the color can be customized.
3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.
4.IR Motion Sensor can be customized.
5.Build-in anti-thief system included.
6.Floor standing type can be fixed on the ground by screws.
| Business Organizations |
supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc. |
| Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops, etc. |
| Non-profit Organizations |
Telecommunications, post offices, hospital, schools, etc. |
| Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc. |
| Real Estate Property |
Apartments, offices, commercial buildings, model rooms, property brokers, etc. |
| Entertainments |
Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc. |
1.Color can be customized.
2.Dimension can be customized.
3.Can print Logo on the frame.
4.Can customize the design.
5.Hardware can be customized.
|
|
|
|
|
