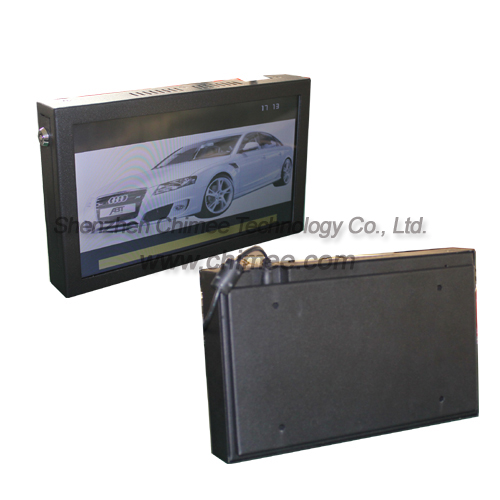

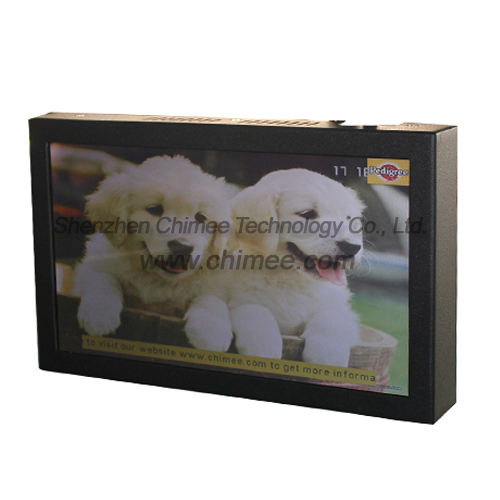

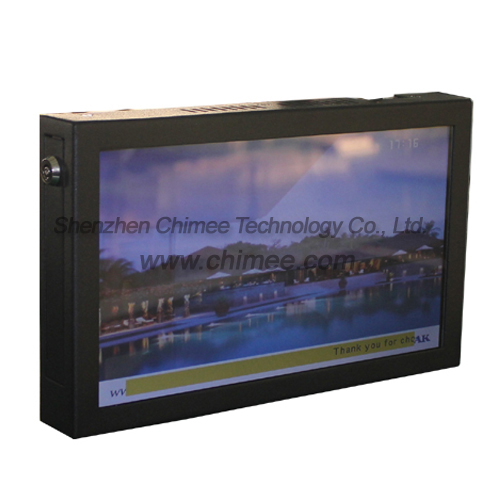

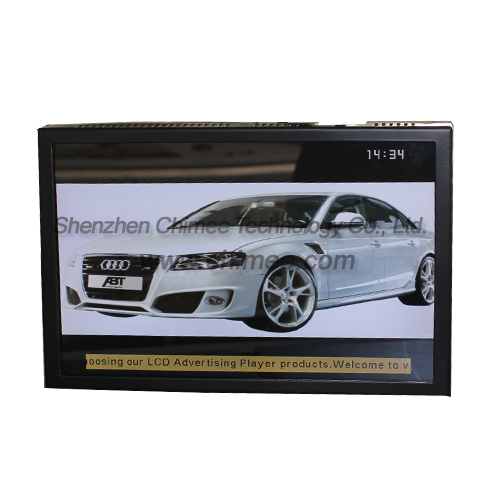

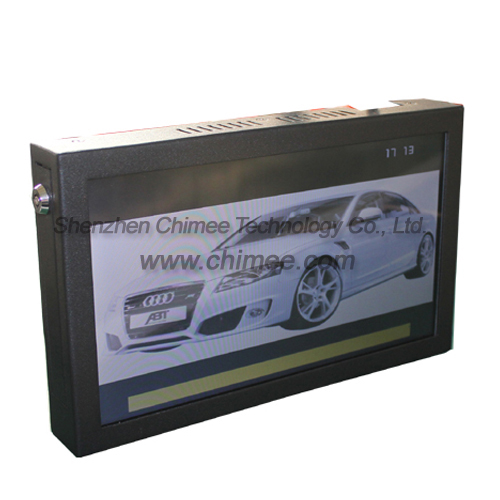

[HQ101-1-T]10.1 inch touch LCD advertising player
Panel Brand: New A grade LG
Max Resolution: 1024x576 Aspect Ratio: 16:9
Active Area: 222.72mm(H)x125.28mm(V)
Metal Frame + 2mm Tempered Glass + Super Slim Design
Narrow Bezel
Black or Silver color
  • LCD Panel
  • Functions
  • Product Features
  • Applicable Fields
  • Customization
Panel Size(Diagonal) 10.1 inch
Display Area(HxV) 222.72mm x 125.28mm
Outline Dimension(HxV) 235mm x 143mm
Display Colors 262,144
Resolution 1024 x 576
Pixel Pitch 0.2175 x 0.2175
Contrast Ratio 300:1
Brightness(cd/m2) 200
Responsive Time 16ms
Viewing Angle(H/V) 140°/120°
Life Time(minimum) 50,000 hours

1.Support CF/SD card and USB as the playing source capacity from 64MB to 32GB, with high data reading speed and high stability.

2.Operate the player with an IR remote controller.

3.Update content by easily inserting a USB.

4.Support Rolling text. The captions can be showed on the screen by easily put a TXT file into the CF/SD card within the rolling contents.

5.Strong time function, can set 5 time groups to turn on/off the player and manage different volume value for those groups.

6.Playing list programming function, can program the playing list with computer.

7.Support LOGO displaying (Need Customize).

8.Support both vertical and horizontal model.

9.OSD Language: supports Chinese, English. Other language can be customized.

10.AV-in, HDMI-in, VGA-in ports can be added (Need customize).

11.Built-in HD stereo speakers, 2 x 2w, 2 x 3w, 2 x 5w.

12.Power supply: AC110-240V, 50/60Hz, or DC 12V, 5A Input.

13.Support most formats of FULL HD 1080P media files, detailed in following sheet:

File Extension

Video Format

Encode Type

Resolution & FPS

Bandwidth

dat,mpg, mpeg

MPG,MPEG

Mpeg1,2

1920x1080@30P

20Mbit/sec

ts, trp, tp, m2ts

MPEG2 -TS
H264-TS

MPEG2 ,H.264

1920x1080@30P

20Mbit/sec

vob

MPEG2 -PS

MPEG2

1920x1080@ 30P

20Mbit/sec

mp4

AVI, MP4

MPEG4,Divx3.11,Divx 4.12, Divx5.x,Divx6, Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid1.10-beta1/2,H.264

1920x1080@ 30P

20Mbit/sec

rm, rmvb

RMVB, RM

rm

1920x1080 @ 25P

10Mbit/sec

mkv

MKV

H.264, MPEG1,2,4

1920x1080 @ 30P

20Mbit/sec

divx, avi

AVI(1.0, 2.0),
DMF0,1,2

MPEG2, MPEG4,Divx3.11,Divx4,
Divx5, Divx 6,Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid 1.10-beta1/2,H.264

1920x1080 @ 30P

20Mbit/sec

Motion JPEG

AVI, MOV

JPEG

640x480 @ 30P

10Mbit/sec

asf, wmv

ASF(Revision 01.20.03)

VC1

1920x1080 @ 30P

20Mbit/sec

Ts

ts

AVS

1920x1080 @ 30P

20Mbit/sec



1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

6.Wall mounting type can be fixed on the wall by screws.

Business Organizations supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops, etc.
Non-profit Organizations Telecommunications, post offices, hospital, schools, etc.
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc.
Real Estate Property Apartments, offices, commercial buildings, model rooms, property brokers, etc.
Entertainments Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc.





1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.

5.Hardware can be customized.
