Products |
|
|
|
|
|
|

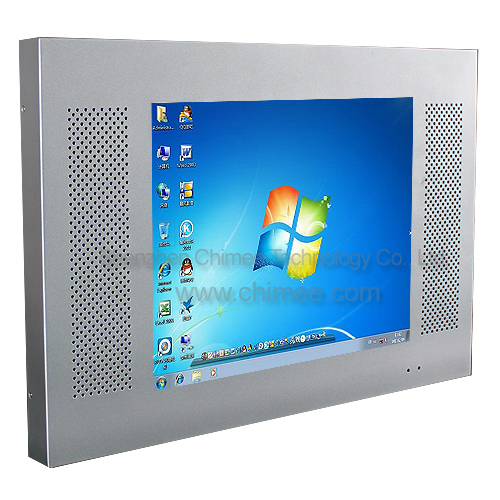

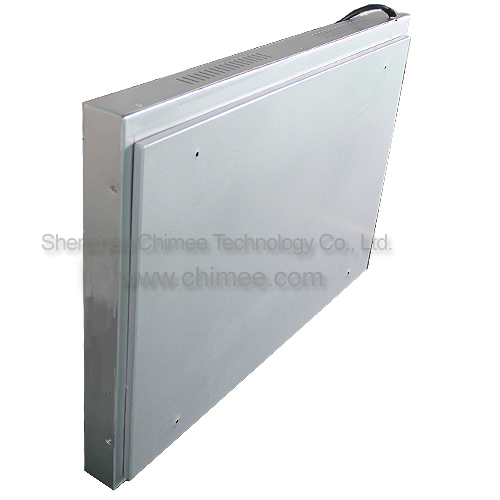

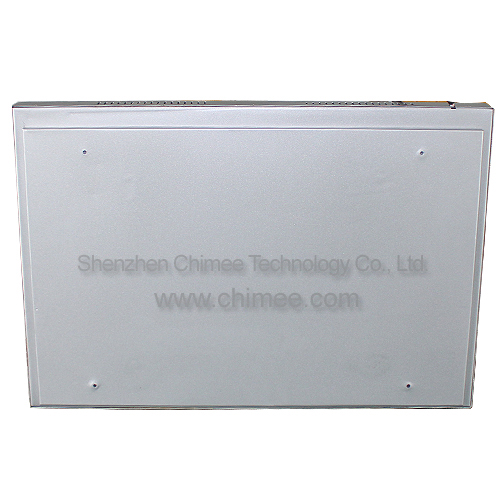

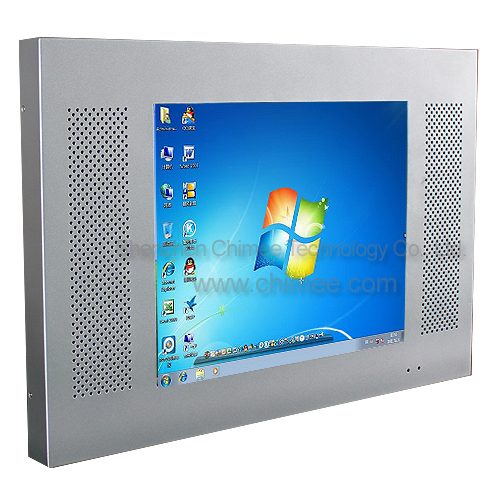

[HQ170-C1-T]17 inch Touch All in one Computer
|
Panel Brand: New A grade SAMSUNG
Max Resolution: 1280x1024 Aspect Ratio: 4:3
Active Area: 337.92mm(H)x270.336mm(V)
Metal Frame + 2mm Tempered Glass + Back Mounting
Resistive Signle Touch or IR Multi Touch
Black or Silver color
|
|
|
|
|
- LCD Panel
- Touch screen specs
- Hardware
- Product Features
- Applicable Fields
- Customization
| Panel Size(Diagonal) |
17 inch |
| Display Area(HxV) |
337.920mm x 270.336mm |
| Outline Dimension(HxV) |
358.5mm x 296.5mm |
| Display Colors |
16.2M |
| Resolution |
1280 x 1024 |
| Pixel Pitch |
0.264 x 0.264 |
| Contrast Ratio |
450:1 |
| Brightness(cd/m2) |
250 |
| Responsive Time |
5ms |
| Viewing Angle(H/V) |
170°/160° |
| Life Time(minimum) |
50,000 hours |
| Touch screen Size |
17 inch |
|
Touch Screen Size |
17 inch |
| Touch Points |
Detects up to 32 points |
Detection Model |
Resistive |
| Touch technology |
IR/ Touch Cell Imaging |
Touch Points |
Single |
| Touch Method |
Finger, gloved hand or other pointer. |
Input |
Finger or touch pen |
| Luminous Transmission |
Better than 98% with glass |
Touch action force |
20-80mg |
| Touch Activation |
No Pressure required |
Position accuracy |
2.5~5mm |
| Finger Touch accuracy |
± 1.5mm |
Response time |
< 10ms |
| Touch Durability |
Unlimited |
Luminous? Transmission |
Better than 98% with glass |
| Touch response time |
7~12 ms |
Operating temperature |
0~55℃ |
| Operating temperature |
0~55℃ |
Operation humidity |
10%~90% |
| Operation humidity |
10%~90% |
Interface |
USB2.0 Full speed |
| Interface |
USB2.0 Full speed |
OS |
Windows 2000, XP, VISTA, WINDOWS 7 |
| OS |
Windows 2000, XP, VISTA, WINDOWS 7 |
|
|
| |
Solution1 |
Solution2 |
Solution3 |
Solution4 |
| CPU |
Intel Atom D525, Dual Core, 1.8Ghz, 1M cache, 45nm Technology |
Intel Core i3-2100, 3.1Ghz, 3M Cache, Dual Core, Quad Threads |
Intel Core i5-2300, 2.8Ghz, 6M Cache, Quad Core, Quad Threads |
Intel Core i7-2600, 3.4Ghz, 8M Cache, Quad Core, 8 Threads |
| Chipset |
Intel NM10 + nVidia ION2 |
Intel H61 Express |
Intel H61 Express |
Intel H61 Express |
| RAM |
2G DDR III/1333 |
DDR III/4G/1333/Up to 16G |
DDR III/4G/1333/Up to 16G |
DDR III/4G/1333/Up to 16G |
| HDD |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
2.5 inch 320G SATA II/SSD from 16G |
| ODD |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
DVD/RW/Blue-Ray(Optional) |
| Audio |
HD 8 Channel 7.1 Audio Sub-system |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
Realtek ALC889 HD(7.1) 8 Channel Codec System |
| Graphics |
nVidia GT 218 integrated/ Full HD 1080P supported |
Integrated with CPU or Add-on a dedicated physical Graphics card |
Integrated with CPU or Add-on a dedicated physical Graphics card |
Integrated with CPU or Add-on a dedicated physical Graphics card |
| Network interface card |
10/100/1000M Gigabyte Ethernet Cotroller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
Realtek 8111E 10/100/1000 Gigabyte Ethernet Controller |
| WiFi |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
150M High Quality WiFi Integrated |
| Speaker |
2 x 5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
2 x5w/10w Built-in Stereo Speakers |
| Mouse/Keyboard |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
Wired/Wireless Keyboard(Optional) |
| OS |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
Windows XP/Vista/7/Fedora/Ubuntu(Optional) |
1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.
2.High-class metal material frame, the color can be customized.
3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.
4.IR Motion Sensor can be customized.
5.Build-in anti-thief system included.
6.Wall mounting type can be fixed on the wall by screws.
| Business Organizations |
supermarket, shopping malls, exclusive agency, chain shops, large-scale sales, hotels, restaurants, travel agencies, etc. |
| Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops, etc. |
| Non-profit Organizations |
Telecommunications, post offices, hospital, schools, etc. |
| Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc. |
| Real Estate Property |
Apartments, offices, commercial buildings, model rooms, property brokers, etc. |
| Entertainments |
Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc. |
1.Color can be customized.
2.Dimension can be customized.
3.Can print Logo on the frame.
4.Can customize the design.
5.Hardware can be customized.
|
|
|
|
|
|
|
|
|
|
| |
