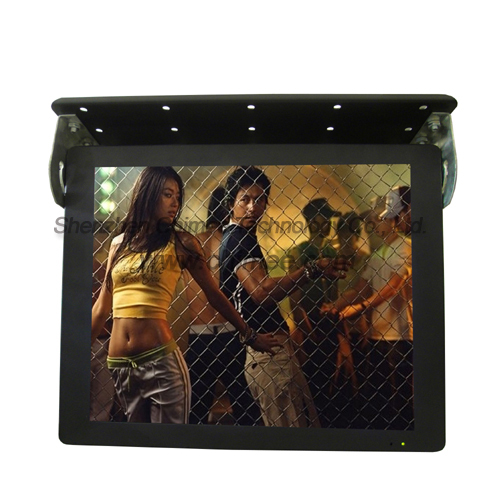

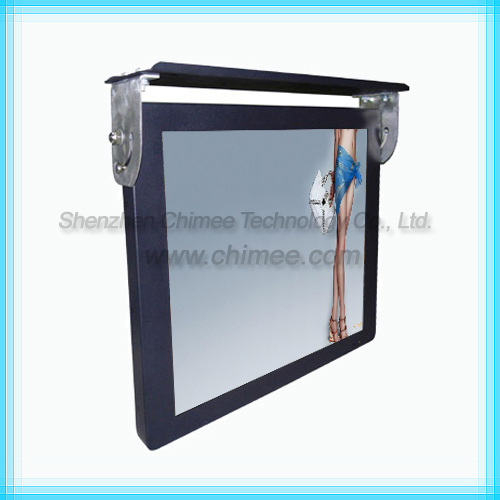

[HQ150-1B-N]15 inch Network Bus LCD advertising player
Panel Brand: New A grade LG
Max Resolution: 1024x768 Aspect Ratio: 4:3
Active Area: 304.128mm(H)x228.069mm(V)
Metal Frame + 2mm Tempered Glass + Roof Mounting
Black or Silver Color
  • LCD Panel
  • Functions
  • Product Features
  • NetWork
  • Applicable Fields
  • Customization
Panel Size(Diagonal) 15.0 inch
Display Area(HxV) 304.128mm x 227.328mm
Outline Dimension(HxV) 326.5mm x 253.5mm
Display Colors 16.7M
Resolution 1024 x 768
Pixel Pitch 0.297 x 0.297
Contrast Ratio 600:1
Brightness(cd/m2) 400
Responsive Time 5ms
Viewing Angle(H/V) 160°/150°
Life Time(minimum) 50,000 hours
    Support wired connection(LAN), wireless connection include Wi-Fi and 3G(WCDMA, TD-SCDMA, CDMA2000) network.
    Support unlimited grouped management.
Support unlimited playing list.
Support timer function, unlimited time groups can be set to turn on/off the player and manage different volume for the groups.
Support screen splitter function.
Support Rolling text function.
Support LOGO displaying.
Support both Vertical and Horizontal mode.
AV-in, HDMI-in, ports can be added (Need customize).
Built-in HD stereo speakers, 2 x 2w, 2 x 3w, 2 x 5w.
Support Full HD1080P media decoding.

1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

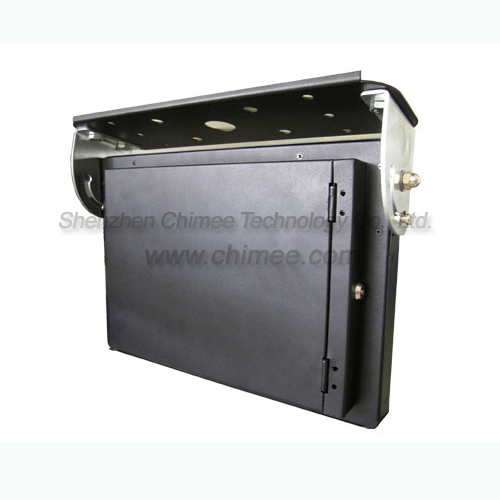

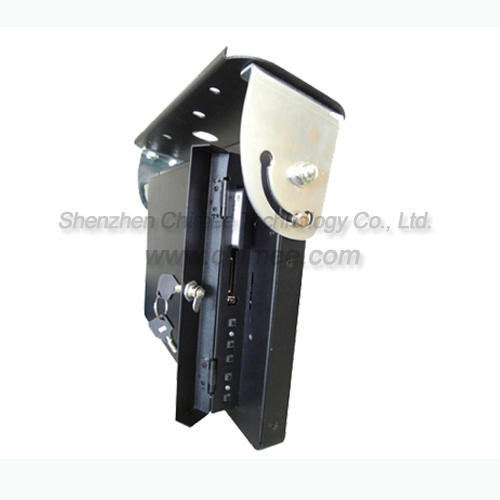

6.With roof mounting bracket or back mounting bracket, special design for buses.

Public Places Train, Bus, Vehicles, etc.

1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.

5.Hardware can be customized.
