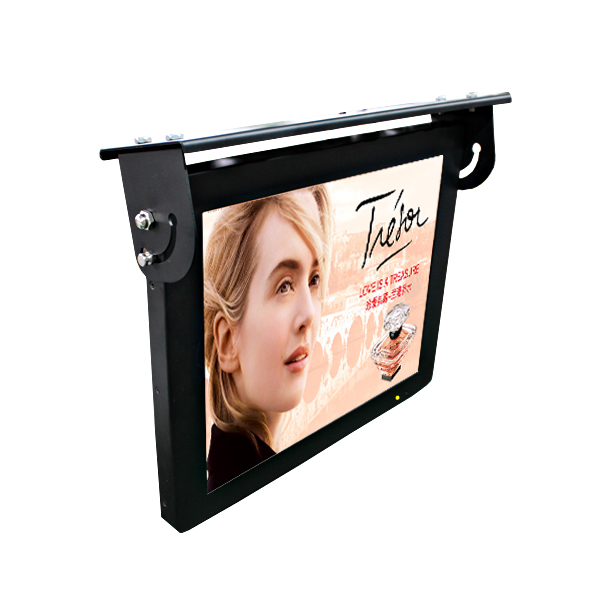

[HQ170-4B]17 inch Bus LCD advertising player
Panel Brand: New A grade SAMSUNG
Max Resolution: 1280x1024 Aspect Ratio: 4:3
Active Area: 337.92mm(H)x270.336mm(V)
Metal Frame + 2mm Tempered Glass + Roof Mounting
Black or Silver Color
  • LCD Panel
  • Functions
  • Product Features
  • Applicable Fields
  • Customization
Panel Size(Diagonal) 17 inch
Display Area(HxV) 337.920mm x 270.336mm
Outline Dimension(HxV) 358.5mm x 296.5mm
Display Colors 16.2M
Resolution 1280 x 1024
Pixel Pitch 0.264 x 0.264
Contrast Ratio 450:1
Brightness(cd/m2) 250
Responsive Time 5ms
Viewing Angle(H/V) 170°/160°
Life Time(minimum) 50,000 hours

1.Support CF/SD card and USB as the playing source capacity from 64MB to 32GB, with high data reading speed and high stability.

2.Operate the player with an IR remote controller.

3.Update content by easily inserting a USB.

4.Support Rolling text. The captions can be showed on the screen by easily put a TXT file into the CF/SD card within the rolling contents.

5.Strong time function, can set 5 time groups to turn on/off the player and manage different volume value for those groups.

6.Playing list programming function, can program the playing list with computer.

7.Support LOGO displaying (Need Customize).

8.Support both vertical and horizontal model.

9.OSD Language: supports Chinese, English. Other language can be customized.

10.AV-in, HDMI-in, VGA-in ports can be added (Need customize).

11.Built-in HD stereo speakers, 2 x 2w, 2 x 3w, 2 x 5w.

12.Power supply: AC110-240V, 50/60Hz, or DC 12V, 5A Input.

13.Support most formats of FULL HD 1080P media files, detailed in following sheet:

File Extension

Video Format

Encode Type

Resolution & FPS

Bandwidth

dat,mpg, mpeg

MPG,MPEG

Mpeg1,2

1920x1080@30P

20Mbit/sec

ts, trp, tp, m2ts

MPEG2 -TS
H264-TS

MPEG2 ,H.264

1920x1080@30P

20Mbit/sec

vob

MPEG2 -PS

MPEG2

1920x1080@ 30P

20Mbit/sec

mp4

AVI, MP4

MPEG4,Divx3.11,Divx 4.12, Divx5.x,Divx6, Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid1.10-beta1/2,H.264

1920x1080@ 30P

20Mbit/sec

rm, rmvb

RMVB, RM

rm

1920x1080 @ 25P

10Mbit/sec

mkv

MKV

H.264, MPEG1,2,4

1920x1080 @ 30P

20Mbit/sec

divx, avi

AVI(1.0, 2.0),
DMF0,1,2

MPEG2, MPEG4,Divx3.11,Divx4,
Divx5, Divx 6,Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid 1.10-beta1/2,H.264

1920x1080 @ 30P

20Mbit/sec

Motion JPEG

AVI, MOV

JPEG

640x480 @ 30P

10Mbit/sec

asf, wmv

ASF(Revision 01.20.03)

VC1

1920x1080 @ 30P

20Mbit/sec

Ts

ts

AVS

1920x1080 @ 30P

20Mbit/sec



1.Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.

2.High-class metal material frame, the color can be customized.

3.Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.

4.IR Motion Sensor can be customized.

5.Build-in anti-thief system included.

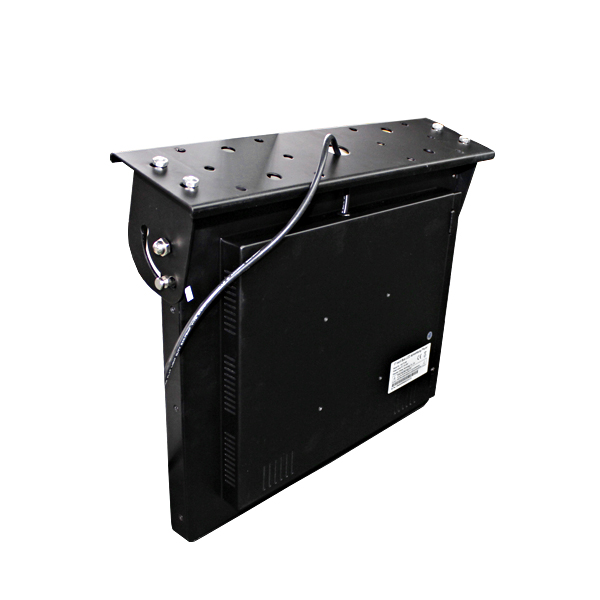

6.With roof mounting bracket or back mounting bracket, special design for buses.

Public Places Train, Bus, Vehicles, etc.

1.Color can be customized.

2.Dimension can be customized.

3.Can print Logo on the frame.

4.Can customize the design.

5.Hardware can be customized.
